A5 Quick Turn Pogo Pin Cassette

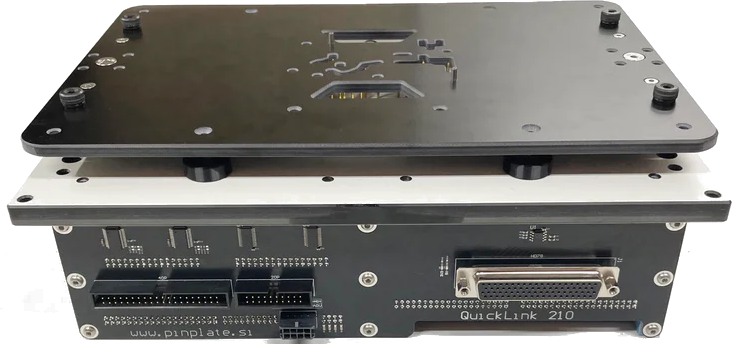

QuickLink 210 Pogo Pin Cassette (PPC)

To interact with the DUT during In-Circuit Testing (ICT) in production, the QuickLink 210 Pogo Pin Cassette (PPC) can be used, with Pogo-Pins hand-wired to a standard PCBA with the HD78 and PWR8 connectors used by the PLT-300A.

This standard PCBA connects with the PLT-300A using:

• HD78 cable

• PWR8 cable

• A5 Quick Turn PPC Pinout

Pin Header: J1 (RPi)

QL210 J1 pin header (RPi)

A5 Quick Turn QL210 PPC Pinout: J1 (Inside), J8 (Outside)

Pin	Signal	Description
1	3V3
2	5V
3	GPIO2
4	5V
5	GPIO3
6	GND
7	GPIO4
8	GPIO14	UART TXD
9	GND
10	GPIO15	UART RXD
11	GPIO17
12	GPIO18
13	GPIO27
14	GND
15	GPIO22
16	GPIO23
17	3V3
18	GPIO24
19	GPIO10
20	GND
21	GPIO9
22	GPIO25
23	GPIO11
24	GPIO8
25	GND
26	GPIO7
27	GPIO0
28	GPIO1
29	GPIO5
30	GND
31	GPIO6
32	GPIO12
33	GPIO13
34	GND
35	GPIO19
36	GPIO16
37	GPIO26
38	GPIO20
39	GND
40	GPIO21

Pin Header: J2 (PROG)

QL210 J2 pin header (SWD/JTAG)

A5 Quick Turn QL210 PPC Pinout: J2 (Inside), J9 (Outside)

Pin	Signal	Description
1	VCC	VTref
2	VCC	optional
3	TRST	JTAG pin; not used in SWD
4	GND
5	TDI	JTAG pin; not used in SWD
6	GND
7	SWDIO	JTAG:TMS
8	GND
9	SWCLK	JTAG:TCLK
10	GND
11	RTCK	JTAG pin; not used in SWD
12	GND
13	SWO	JTAG:TDO
14	GND
15	RESET
16	GND
17	nc	not used in SWD
18	GND
19	nc	FLASHER:5V-Supply
20	GND

Pin Header: J3 (PWR8)

DUT Power & Ground

QL210 J3 pin header (PWR8)

A5 Quick Turn QL210 PPC Pinout: J3 (Inside), J10 (Outside)

Pin	Signal	Description
1	1V8OUT	1.8V DUT Power Rail
2	3V3OUT	3V DUT Power Rail
3	5VOUT	5V DUT Power Rail
4	VARVOUT	VARV DUT Power Rail
5	GND1	DUT GND #1
6	GND2	DUT GND #2
7	GND3	DUT GND #3
8	GND4	DUT GND #4

Pin Header: J4 (RDTP)

QL210 J4 pin header (RDTP)

A5 Quick Turn QL210 PPC Pinout: J4 (Inside), Outside: n/a

Pin	Signal	Description
0	RDTP00	Routed Digital Test Probe #0
1	RDTP01	Routed Digital Test Probe #1
:	:	:
30	RDTP30	Routed Digital Test Probe #30
31	RDTP31	Routed Digital Test Probe #31

Pin Header: J5 (RATP)

QL210 J5 pin header (RATP)

A5 Quick Turn QL210 PPC Pinout: J5 (Inside), Outside: n/a

Pin	Signal	Description
0	RATP00	Routed Analog Test Probe #0
1	RATP01	Routed Analog Test Probe #1
:	:	:
30	RATP31	Routed Analog Test Probe #30
31	RATP31	Routed Analog Test Probe #31

Pin Header: J6 (HD78)

QL210 J6 pin header (HD78)

A5 Quick Turn QL210 PPC Pinout: J6 (Inside), J11 (Outside)

Pin	Signal	Description
1	Reserved	Reserved
2	Reserved	Reserved
:	Reserved	Reserved
18	Reserved	Reserved
19	DATP00	Direct Analog Test Probe #0
20	DATP01	Direct Analog Test Probe #1
21	DATP02	Direct Analog Test Probe #2
22	DATP03	Direct Analog Test Probe #3
23	DATP04	Direct Analog Test Probe #4
24	DATP05	Direct Analog Test Probe #5
25	DATP06	Direct Analog Test Probe #6
26	DATP07	Direct Analog Test Probe #7
27	Reserved	Reserved
28	DATP08	Direct Analog Test Probe #8
29	DATP09	Direct Analog Test Probe #9
30	DATP10	Direct Analog Test Probe #10
31	DATP11	Direct Analog Test Probe #11
32	DATP12	Direct Analog Test Probe #12
33	DDTP12	Direct Digital Test Probe #12
34	DDTP13	Direct Digital Test Probe #13
35	DDTP14	Direct Digital Test Probe #14
36	Reserved	Reserved
:	Reserved	Reserved
39	Reserved	Reserved
40	DDTP00	Direct Analog Test Probe #0
41	DDTP01	Direct Analog Test Probe #1
42	DDTP02	Direct Analog Test Probe #2
43	DDTP03	Direct Analog Test Probe #3
44	DDTP04	Direct Analog Test Probe #4
45	DDTP05	Direct Analog Test Probe #5
46	DDTP06	Direct Analog Test Probe #6
47	DDTP07	Direct Analog Test Probe #7
48	DDTP08	Direct Analog Test Probe #8
49	DDTP09	Direct Analog Test Probe #9
50	DDTP10	Direct Analog Test Probe #10
51	DDTP11	Direct Analog Test Probe #11
52	Reserved	Reserved
:	Reserved	Reserved
78	Reserved	Reserved
79	Shield	Reserved
80	Shield	Reserved
