A5 Quick Turn PPC Pinout

Pinout for the standard PCBA used in the A5 Quick Turn QuickLink 210 Pogo Pin Cassette (PPC).

../../../_images/conn-QL210-J4_RDTP-portrait.png ../../../_images/conn-QL210-J5_RATP-portrait.png ../../../_images/conn-QL210-J6_HD78-portrait.png ../../../_images/conn-QL210-J2_PROG-portrait.png ../../../_images/conn-QL210-J1_RPi-portrait.png ../../../_images/conn-QL210-J3_PWR8-portrait.png
A5 Quick Turn QuickLink QL210 PPC Pinout (Rev 1.1)

QL210 Pin (Inside)

Signal

QL210 Pin (Outside)

Description

J1

J8

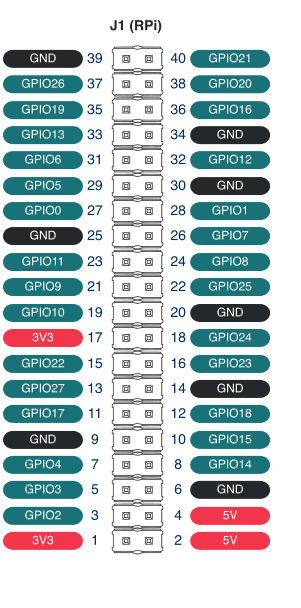

SBC 40-pin header (PLT Agent)

J1-Pin01

3V3

J8-Pin1

J1-Pin02

5V

J8-Pin2

J1-Pin03

GPIO2

J8-Pin3

J1-Pin04

5V

J8-Pin4

J1-Pin05

GPIO3

J8-Pin5

J1-Pin06

GND

J8-Pin6

J1-Pin07

GPIO4

J8-Pin7

J1-Pin08

GPIO14

J8-Pin8

UART TXD

J1-Pin09

GND

J8-Pin9

J1-Pin10

GPIO15

J8-Pin10

UART RXD

J1-Pin11

GPIO17

J8-Pin11

J1-Pin12

GPIO18

J8-Pin12

J1-Pin13

GPIO27

J8-Pin13

J1-Pin14

GND

J8-Pin14

J1-Pin15

GPIO22

J8-Pin15

J1-Pin16

GPIO23

J8-Pin16

J1-Pin17

3V3

J8-Pin17

J1-Pin18

GPIO24

J8-Pin18

J1-Pin19

GPIO10

J8-Pin19

J1-Pin20

GND

J8-Pin20

J1-Pin21

GPIO9

J8-Pin21

J1-Pin22

GPIO25

J8-Pin22

J1-Pin23

GPIO11

J8-Pin23

J1-Pin24

GPIO8

J8-Pin24

J1-Pin25

GND

J8-Pin25

J1-Pin26

GPIO7

J8-Pin26

J1-Pin27

GPIO0

J8-Pin27

J1-Pin28

GPIO1

J8-Pin28

J1-Pin29

GPIO5

J8-Pin29

J1-Pin30

GND

J8-Pin30

J1-Pin31

GPIO6

J8-Pin31

J1-Pin32

GPIO12

J8-Pin32

J1-Pin33

GPIO13

J8-Pin33

J1-Pin34

GND

J8-Pin34

J1-Pin35

GPIO19

J8-Pin35

J1-Pin36

GPIO16

J8-Pin36

J1-Pin37

GPIO26

J8-Pin37

J1-Pin38

GPIO20

J8-Pin38

J1-Pin39

GND

J8-Pin39

J1-Pin40

GPIO21

J8-Pin40

J2

J9

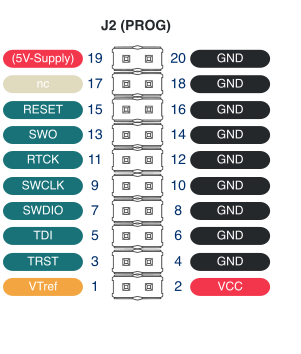

Programmer (SWD/JTAG)

J2-Pin01

VCC

J9-Pin1

VTref

J2-Pin02

VCC

J9-Pin2

optional

J2-Pin03

TRST

J9-Pin3

JTAG pin; not used in SWD

J2-Pin04

GND

J9-Pin4

J2-Pin05

TDI

J9-Pin5

JTAG pin; not used in SWD

J2-Pin06

GND

J9-Pin6

J2-Pin07

SWDIO

J9-Pin7

JTAG:TMS

J2-Pin08

GND

J9-Pin8

J2-Pin09

SWCLK

J9-Pin9

JTAG:TCLK

J2-Pin10

GND

J9-Pin10

J2-Pin11

RTCK

J9-Pin11

JTAG pin; not used in SWD

J2-Pin12

GND

J9-Pin12

J2-Pin13

SWO

J9-Pin13

JTAG:TDO

J2-Pin14

GND

J9-Pin14

J2-Pin15

RESET

J9-Pin15

J2-Pin16

GND

J9-Pin16

J2-Pin17

nc

J9-Pin17

not used in SWD

J2-Pin18

GND

J9-Pin18

J2-Pin19

nc

J9-Pin19

FLASHER:5V-Supply

J2-Pin20

GND

J9-Pin20

J3

J10

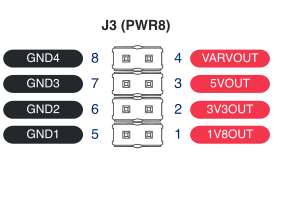

PWR8: DUT Power & Ground

J3-Pin01

1V8OUT

J10-Pin1

J3-Pin02

3V3OUT

J10-Pin2

J3-Pin03

5VOUT

J10-Pin3

J3-Pin04

VARVOUT

J10-Pin4

J3-Pin05

GND1

J10-Pin5

J3-Pin06

GND2

J10-Pin6

J3-Pin07

GND3

J10-Pin7

J3-Pin08

GND4

J10-Pin8

J4

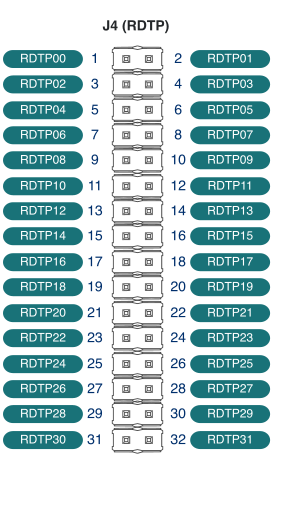

Routed Digital Test Probes (RDTP)

J4-Pin01

RDTP00

n/a

Routed Digital Test Probe #0

J4-Pin02

RDTP01

n/a

Routed Digital Test Probe #1

J4-Pin03

RDTP02

n/a

Routed Digital Test Probe #2

J4-Pin04

RDTP03

n/a

Routed Digital Test Probe #3

J4-Pin05

RDTP04

n/a

Routed Digital Test Probe #4

J4-Pin06

RDTP05

n/a

Routed Digital Test Probe #5

J4-Pin07

RDTP06

n/a

Routed Digital Test Probe #6

J4-Pin08

RDTP07

n/a

Routed Digital Test Probe #7

J4-Pin09

RDTP08

n/a

Routed Digital Test Probe #8

J4-Pin10

RDTP09

n/a

Routed Digital Test Probe #9

J4-Pin11

RDTP10

n/a

Routed Digital Test Probe #10

J4-Pin12

RDTP11

n/a

Routed Digital Test Probe #11

J4-Pin13

RDTP12

n/a

Routed Digital Test Probe #12

J4-Pin14

RDTP13

n/a

Routed Digital Test Probe #13

J4-Pin15

RDTP14

n/a

Routed Digital Test Probe #14

J4-Pin16

RDTP15

n/a

Routed Digital Test Probe #15

J4-Pin17

RDTP16

n/a

Routed Digital Test Probe #16

J4-Pin18

RDTP17

n/a

Routed Digital Test Probe #17

J4-Pin19

RDTP18

n/a

Routed Digital Test Probe #18

J4-Pin20

RDTP19

n/a

Routed Digital Test Probe #19

J4-Pin21

RDTP20

n/a

Routed Digital Test Probe #20

J4-Pin22

RDTP21

n/a

Routed Digital Test Probe #21

J4-Pin23

RDTP22

n/a

Routed Digital Test Probe #22

J4-Pin24

RDTP23

n/a

Routed Digital Test Probe #23

J4-Pin25

RDTP24

n/a

Routed Digital Test Probe #24

J4-Pin26

RDTP25

n/a

Routed Digital Test Probe #25

J4-Pin27

RDTP26

n/a

Routed Digital Test Probe #26

J4-Pin28

RDTP27

n/a

Routed Digital Test Probe #27

J4-Pin29

RDTP28

n/a

Routed Digital Test Probe #28

J4-Pin30

RDTP29

n/a

Routed Digital Test Probe #29

J4-Pin31

RDTP30

n/a

Routed Digital Test Probe #30

J4-Pin32

RDTP31

n/a

Routed Digital Test Probe #31

J5

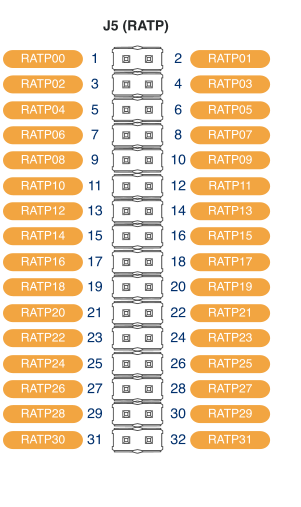

Routed Analog Test Probes (RATP)

J5-Pin01

RATP00

n/a

Routed Analog Test Probe #0

J5-Pin02

RATP01

n/a

Routed Analog Test Probe #1

J5-Pin03

RATP02

n/a

Routed Analog Test Probe #2

J5-Pin04

RATP03

n/a

Routed Analog Test Probe #3

J5-Pin05

RATP04

n/a

Routed Analog Test Probe #4

J5-Pin06

RATP05

n/a

Routed Analog Test Probe #5

J5-Pin07

RATP06

n/a

Routed Analog Test Probe #6

J5-Pin08

RATP07

n/a

Routed Analog Test Probe #7

J5-Pin09

RATP08

n/a

Routed Analog Test Probe #8

J5-Pin10

RATP09

n/a

Routed Analog Test Probe #9

J5-Pin11

RATP10

n/a

Routed Analog Test Probe #10

J5-Pin12

RATP11

n/a

Routed Analog Test Probe #11

J5-Pin13

RATP12

n/a

Routed Analog Test Probe #12

J5-Pin14

RATP13

n/a

Routed Analog Test Probe #13

J5-Pin15

RATP14

n/a

Routed Analog Test Probe #14

J5-Pin16

RATP15

n/a

Routed Analog Test Probe #15

J5-Pin17

RATP16

n/a

Routed Analog Test Probe #16

J5-Pin18

RATP17

n/a

Routed Analog Test Probe #17

J5-Pin19

RATP18

n/a

Routed Analog Test Probe #18

J5-Pin20

RATP19

n/a

Routed Analog Test Probe #19

J5-Pin21

RATP20

n/a

Routed Analog Test Probe #20

J5-Pin22

RATP21

n/a

Routed Analog Test Probe #21

J5-Pin23

RATP22

n/a

Routed Analog Test Probe #22

J5-Pin24

RATP23

n/a

Routed Analog Test Probe #23

J5-Pin25

RATP24

n/a

Routed Analog Test Probe #24

J5-Pin26

RATP25

n/a

Routed Analog Test Probe #25

J5-Pin27

RATP26

n/a

Routed Analog Test Probe #26

J5-Pin28

RATP27

n/a

Routed Analog Test Probe #27

J5-Pin29

RATP28

n/a

Routed Analog Test Probe #28

J5-Pin30

RATP29

n/a

Routed Analog Test Probe #29

J5-Pin31

RATP30

n/a

Routed Analog Test Probe #30

J5-Pin32

RATP31

n/a

Routed Analog Test Probe #31

J6

J11

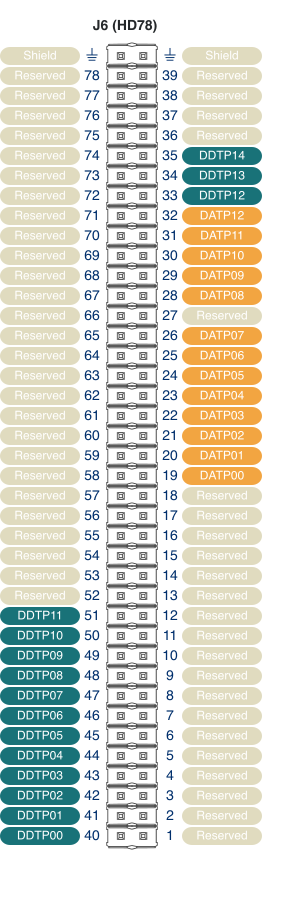

HD78

J6-Pin01

Reserved

J11-Pin1

Reserved

J6-Pin02

Reserved

J11-Pin2

Reserved

J6-Pin03

Reserved

J11-Pin3

Reserved

J6-Pin04

Reserved

J11-Pin4

Reserved

J6-Pin05

Reserved

J11-Pin5

Reserved

J6-Pin06

Reserved

J11-Pin6

Reserved

J6-Pin07

Reserved

J11-Pin7

Reserved

J6-Pin08

Reserved

J11-Pin8

Reserved

J6-Pin09

Reserved

J11-Pin9

Reserved

J6-Pin10

Reserved

J11-Pin10

Reserved

J6-Pin11

Reserved

J11-Pin11

Reserved

J6-Pin12

Reserved

J11-Pin12

Reserved

J6-Pin13

Reserved

J11-Pin13

Reserved

J6-Pin14

Reserved

J11-Pin14

Reserved

J6-Pin15

Reserved

J11-Pin15

Reserved

J6-Pin16

Reserved

J11-Pin16

Reserved

J6-Pin17

Reserved

J11-Pin17

Reserved

J6-Pin18

Reserved

J11-Pin18

Reserved

J6-Pin19

DATP00

J11-Pin19

Direct Analog Test Probe #0

J6-Pin20

DATP01

J11-Pin20

Direct Analog Test Probe #1

J6-Pin21

DATP02

J11-Pin21

Direct Analog Test Probe #2

J6-Pin22

DATP03

J11-Pin22

Direct Analog Test Probe #3

J6-Pin23

DATP04

J11-Pin23

Direct Analog Test Probe #4

J6-Pin24

DATP05

J11-Pin24

Direct Analog Test Probe #5

J6-Pin25

DATP06

J11-Pin25

Direct Analog Test Probe #6

J6-Pin26

DATP07

J11-Pin26

Direct Analog Test Probe #7

J6-Pin27

Reserved

J11-Pin27

Reserved

J6-Pin28

DATP08

J11-Pin28

Direct Analog Test Probe #8

J6-Pin29

DATP09

J11-Pin29

Direct Analog Test Probe #9

J6-Pin30

DATP10

J11-Pin30

Direct Analog Test Probe #10

J6-Pin31

DATP11

J11-Pin31

Direct Analog Test Probe #11

J6-Pin32

DATP12

J11-Pin32

Direct Analog Test Probe #12

J6-Pin33

DDTP12

J11-Pin33

Direct Digital Test Probe #12

J6-Pin34

DDTP13

J11-Pin34

Direct Digital Test Probe #13

J6-Pin35

DDTP14

J11-Pin35

Direct Digital Test Probe #14

J6-Pin36

Reserved

J11-Pin36

Reserved

J6-Pin37

Reserved

J11-Pin37

Reserved

J6-Pin38

Reserved

J11-Pin38

Reserved

J6-Pin39

Reserved

J11-Pin39

Reserved

J6-Pin40

DDTP00

J11-Pin40

Direct Analog Test Probe #0

J6-Pin41

DDTP01

J11-Pin41

Direct Analog Test Probe #1

J6-Pin42

DDTP02

J11-Pin42

Direct Analog Test Probe #2

J6-Pin43

DDTP03

J11-Pin43

Direct Analog Test Probe #3

J6-Pin44

DDTP04

J11-Pin44

Direct Analog Test Probe #4

J6-Pin45

DDTP05

J11-Pin45

Direct Analog Test Probe #5

J6-Pin46

DDTP06

J11-Pin46

Direct Analog Test Probe #6

J6-Pin47

DDTP07

J11-Pin47

Direct Analog Test Probe #7

J6-Pin48

DDTP08

J11-Pin48

Direct Analog Test Probe #8

J6-Pin49

DDTP09

J11-Pin49

Direct Analog Test Probe #9

J6-Pin50

DDTP10

J11-Pin50

Direct Analog Test Probe #10

J6-Pin51

DDTP11

J11-Pin51

Direct Analog Test Probe #11

J6-Pin52

Reserved

J11-Pin52

Reserved

J6-Pin53

Reserved

J11-Pin53

Reserved

J6-Pin54

Reserved

J11-Pin54

Reserved

J6-Pin55

Reserved

J11-Pin55

Reserved

J6-Pin56

Reserved

J11-Pin56

Reserved

J6-Pin57

Reserved

J11-Pin57

Reserved

J6-Pin58

Reserved

J11-Pin58

Reserved

J6-Pin59

Reserved

J11-Pin59

Reserved

J6-Pin60

Reserved

J11-Pin60

Reserved

J6-Pin61

Reserved

J11-Pin61

Reserved

J6-Pin62

Reserved

J11-Pin62

Reserved

J6-Pin63

Reserved

J11-Pin63

Reserved

J6-Pin64

Reserved

J11-Pin64

Reserved

J6-Pin65

Reserved

J11-Pin65

Reserved

J6-Pin66

Reserved

J11-Pin66

Reserved

J6-Pin67

Reserved

J11-Pin67

Reserved

J6-Pin68

Reserved

J11-Pin68

Reserved

J6-Pin69

Reserved

J11-Pin69

Reserved

J6-Pin70

Reserved

J11-Pin70

Reserved

J6-Pin71

Reserved

J11-Pin71

Reserved

J6-Pin72

Reserved

J11-Pin72

Reserved

J6-Pin73

Reserved

J11-Pin73

Reserved

J6-Pin74

Reserved

J11-Pin74

Reserved

J6-Pin75

Reserved

J11-Pin75

Reserved

J6-Pin76

Reserved

J11-Pin76

Reserved

J6-Pin77

Reserved

J11-Pin77

Reserved

J6-Pin78

Reserved

J11-Pin78

Reserved

J6-Pin79

Shield

J11-Shield

Reserved

J6-Pin80

Shield

J11-Shield

Reserved
